Plumbing question

« back to Interior Home Improvement forum

Topic by david_larch posted 11-13-2012 06:40 AM 1819 views 0 times favorited 8 replies Add to Favorites Watch
View david_larch's profile

david_larch

1 post in 675 days

11-13-2012 06:40 AM

Hey all, plumbing question and background info for you. I have an older home with cast iron pipes. I had everything interior and to the street scoped last year and looked good. Our laundry room is another story. It’s semi detached semi attached by a sun room type thing. Anyway, the washer started overflowing the drain so I had it snaked. 5 wks later same thing happens. now the snake isnt cutting it and the plumber says I need to replace the T and P trap as they are 1.5” into a 2”. He went in through a cleanout on the other side of the wall from a remnant sink-now gone. Said he could get the snake into the house line ok, but couldn’t go through the P trap the other way.

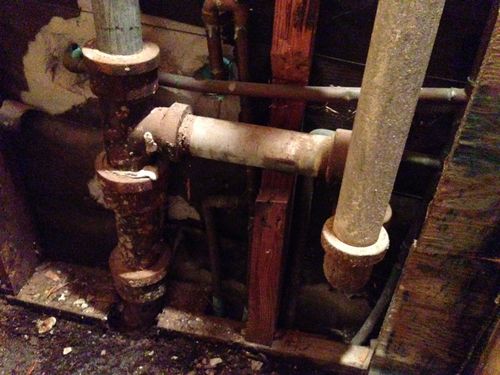

Looking at the photo you can see the sewer line come up out of the concrete on the left. Then a Y – used to be a sink on other side of the wall. Next is the tee going to the P trap and pipe for the washer discharge.

My question is: am I going to have enough room to cut the cast iron below the Y and get the fitting for the new black pipe on? I hadn’t expected there to be such a mangle in there. Any help is appreciated.



View J's profile

J

70 posts in 796 days

11-16-2012 08:42 AM

There are all types of fittings that can be used to change from iron to ABS or PVC.
You probably dont want to cut off the flange on the bottom sewer pipe. It is easier to shorten pipe than lengthen it. Be very careful when separating the old iron pipes, they have a tendency to break, especially at the point where they cant be accessed easily or cheaply. My suggestion is to remove the two tee-wyes, and everything else above them.

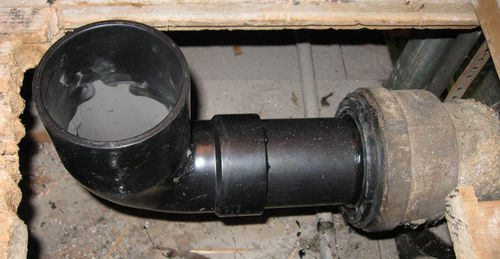

I would use a Fernco, or a C.I. to plastic on the upper pipes and a ABS to iron adaptor to slip into the bottom connection. Any professional plumbing supply house or good hardware store should stock both fittings, or at least have more choices available.

Make your connections and plumb in your new plastic however you choose.
Good luck.

-- I found the board stretcher... finally!

View joechoniski's profile

joechoniski

2 posts in 437 days

07-09-2013 04:45 AM

hi,
Sink Mixer with Swivel Spout

We are offering an extensive range of Sink Mixer with Swivel Spout, which is one of the highly demanded products in the industry. These are designed in accordance with the set industry standard. Our range has two knobs. The range offered by us is unique and augment the beauty of the bathroom. We offer these at economical prices to our esteemed clients. Further, these are also personalized as per the clients’ requirement.

View James Nithan's profile

James Nithan

15 posts in 436 days

07-09-2013 11:53 AM

You can seek advice from professional plumber to solve your problem.

Home Remodeling Resource Portal.

-- James, NJ, http://www.hirecontractor.com/

View getroofingquotes's profile

getroofingquotes

58 posts in 587 days

07-13-2013 01:30 PM

By the look at the pics. I think you need a plumber for it.

-- GetRoofingQuotes.com

View joechoniski's profile

joechoniski

2 posts in 437 days

08-13-2013 11:21 AM

Replace the cabinets, counter tops, and faucets with newer modern and efficient designs. When replacing the cabinets, think about the utility and efficiency of storage of all the items that wind up in a bathroom.

View Farrell Mackennon's profile

Farrell Mackennon

2 posts in 295 days

12-11-2013 02:43 AM

I would suggest getting the plumber to sort out this job, not particularly because it is complicated but due to the messy structure that is there and the age of the property there could be more going on than you know. As a plumber myself, and a professional, I have done hundreds of plumbing jobs over the years and, take it from me, there can be all kinds of surprises in older buildings. Getting a professional in to do the work means it will be done quickly and efficiently and you can have your laundry room back in no time. Plumbers undergo a lengthy apprenticeship because this is a profession that requires skill and knowledge and experience.

View Ramparasad's profile

Ramparasad

1 post in 282 days

12-11-2013 04:09 AM

This seems quite old pipe and definitely requires the help of a professional plumber to solve this problem.

Plumbing

View james12's profile

james12

3 posts in 574 days

12-13-2013 04:18 PM

From this picture, seek an advice from a professional plumbing service which can be an expert in fixing pipes, fixing hydronic water heating system and sewers.
